Product detail / G-5423
2.126 inch Wide Extruded Aluminum Heat Sink
Compact 54 mm extrusion profile for heat-sensitive control boards, power devices, and small industrial assemblies.
AL6063-T5+/-0.1 mm cut+/-0.05 mm holes
Product main image / G-5423
Product images

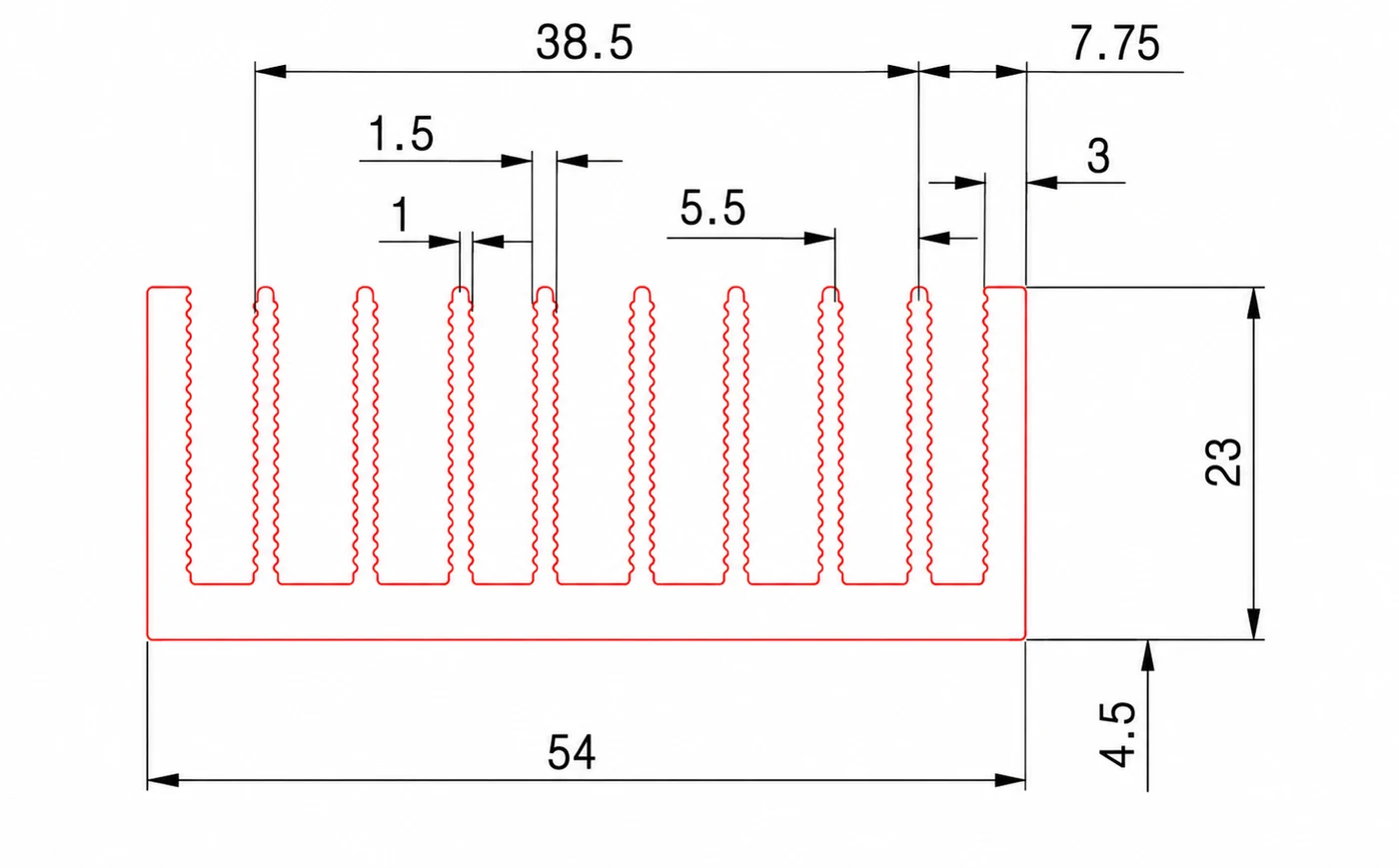

Main product image and reference drawings.
Click any image to enlarge. Product photos and dimension references are grouped for review.Product Parameters
More About Extruded Aluminum Heat Sink
Product NameExtruded Aluminum Heat Sink
Model No.G-5423
Width54 mm / 2.126 inch
MaterialAluminum Alloy 6063-T5
OEM / ODMAvailable
Surface TreatmentMill Finish (Non-Anodized) / Brushed Finish / Mirror Polished Finish / Anodized Finish
Custom SizesAvailable
Test ReportRoHS
Cutting Tolerance+/-0.1 mm
Hole Position Tolerance+/-0.05 mm
Weight1.451 kg/m
Fin Count10 pcs fins
Product Description
Designed for continuous thermal load in industrial electronics.
This aluminum heat sink is designed to efficiently dissipate heat generated by high-power electronic devices, ensuring stable operation and extended service life of equipment. It is widely used in welding machines, audio amplifiers, air conditioners, inverters, and other industrial or electrical systems. With excellent thermal conductivity and reliable structural design, it provides effective cooling performance under continuous and high-load working conditions.
Please confirm the heat sink drawing, profile size, cutting length, hole positions, surface treatment, logo requirements, order quantity, and packaging requirements before quotation.
Preferred drawingsSTEP / PDF / DXF
Compliance fileRoHS
Recommended applications
Welding machinesInvertersPower amplifiersIndustrial electronics
Thermal resistance vs airflowG-5423
Thermal Benchmark
Confirm final performance with your airflow, load, and assembly space.
The drawing profile is the quotation baseline. Final thermal behavior depends on air velocity, component contact quality, mounting pressure, ambient temperature, and enclosure layout.
Use the CAD drawing to verify fin clearance and mounting area.Share heat load, airflow direction, and duty cycle for engineering review.
